What is RTBH?

Definition of Remotely Triggered Black Hole

Remotely Triggered Black Hole (RTBH) is best explained as “blocking undesirable data traffic at the edge of a network (based on either source or destination IP addresses) before it reaches the network”. In effect, this means that all traffic towards a specific destination is rerouted to a null IP address – essentially a “black hole” in network terms - and dropped there. RTBH is a protocol-based tool which is generally used by network service providers to avoid or mitigate DDoS attacks and improve network security overall. Critically, RTBH is implemented outside the network where the offending address(es) reside. This could be initiated from a customer network towards a service provider, for example.

Technology

This technology has been widely adopted in the industry for some time now. The main characteristic of any blackholing - remotely triggered or not, is that it stops all malicious traffic by rewriting the prefixes and redirecting them into a “black hole”. One of the more common methods is where a centralized device controlled by the NOC propagates RTBH with the Internal Border Gateway Protocol (iBGP). This reduces the configuration overhead on individual edge devices and allows networks to be secured rapidly via BGP.

Downstream customer of a network service provider can also send blackholing requests using the Border Gateway Protocol (BGP). This is facilitated with a community string – additional information that is “bolted-on” to a route advertisement. This is then used by a provider to stop traffic entering a customer’s network.

Read more

RTBH comes in two main flavors:

  • Destination-based RTBH where a trigger event (either a central device or a request from a customer or peer) propagates the blackhole through the network to the edge via BGP, based on a specific destination. In practice, this process involves multiple steps, starting by immediately dropping the offending traffic at the network edge. A list of black-holed destination addresses is then documented and once the threat subsides, the target addresses are bought back into service as soon as possible
  • Source-based RTBH drops traffic at the network edge based on a specific source address or range of source addresses. This method uses the same trigger mechanism as destination-based RTBH. The main difference here is that it is a lot easier to roll-back, but care needs to be taken not to lose track of the addresses on the blacklist and also that that only properly validated external BGP requests are allowed to blackhole any addresses
Read more

The key benefits of RTBH

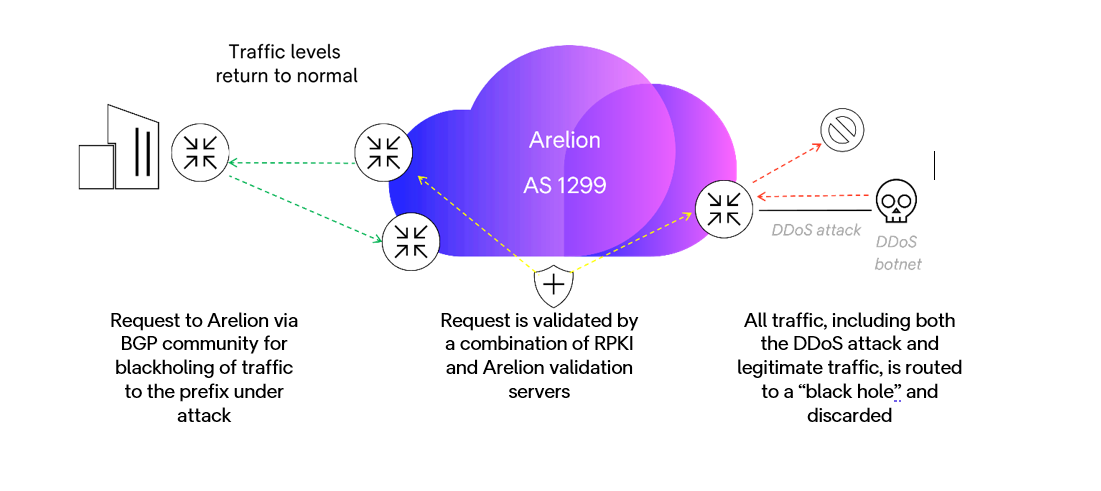

Security – RTBH is a highly effective way for customers to block malicious traffic, like in a DDoS attack and damage can be mitigated at an early stage. For example, if non-legitimate traffic is coming from a specific route, or if the routes themselves need to be blocked, we can blackhole them either at the edge of the customer’s network or the edge of ours and eliminate the problem quickly and effectively.

Self-service – since RTBH can be triggered by a community advertisement, customers can initiate blackholing themselves in the event of an attack, without contacting a NOC and thereby saving valuable time.

Reliability – Customer-triggered blackholing is not without risk. However, Arelion has developed a detection mechanism that allows the validation of these requests - both against centralized RPKI databases and by internal route analysis, to avoid unintentional mistakes and route hijacks.

Transparency –  the power to blackhole traffic is placed in the customers hands, allowing them to manage network attacks as and when they see fit.

Read more

RTBH limitations

Although RTBH is automated and therefore faster to implement than other DDoS mitigation techniques, it is a fairly blunt instrument, just like all other black-holing methods. Traffic filtering is indiscriminate and all traffic to and from blackholed IP addresses will be dropped, even if it is legitimate.
